12V & 24V Battery Charging

Intelligent Charger

Compact and high-output intelligent battery chargers for 12V and 24V systems, with charging currents from 3A to 40A and maximum output power up to 1000W.

12V & 24V Battery Systems

3A–40A Output Range

AC & DC Input Options

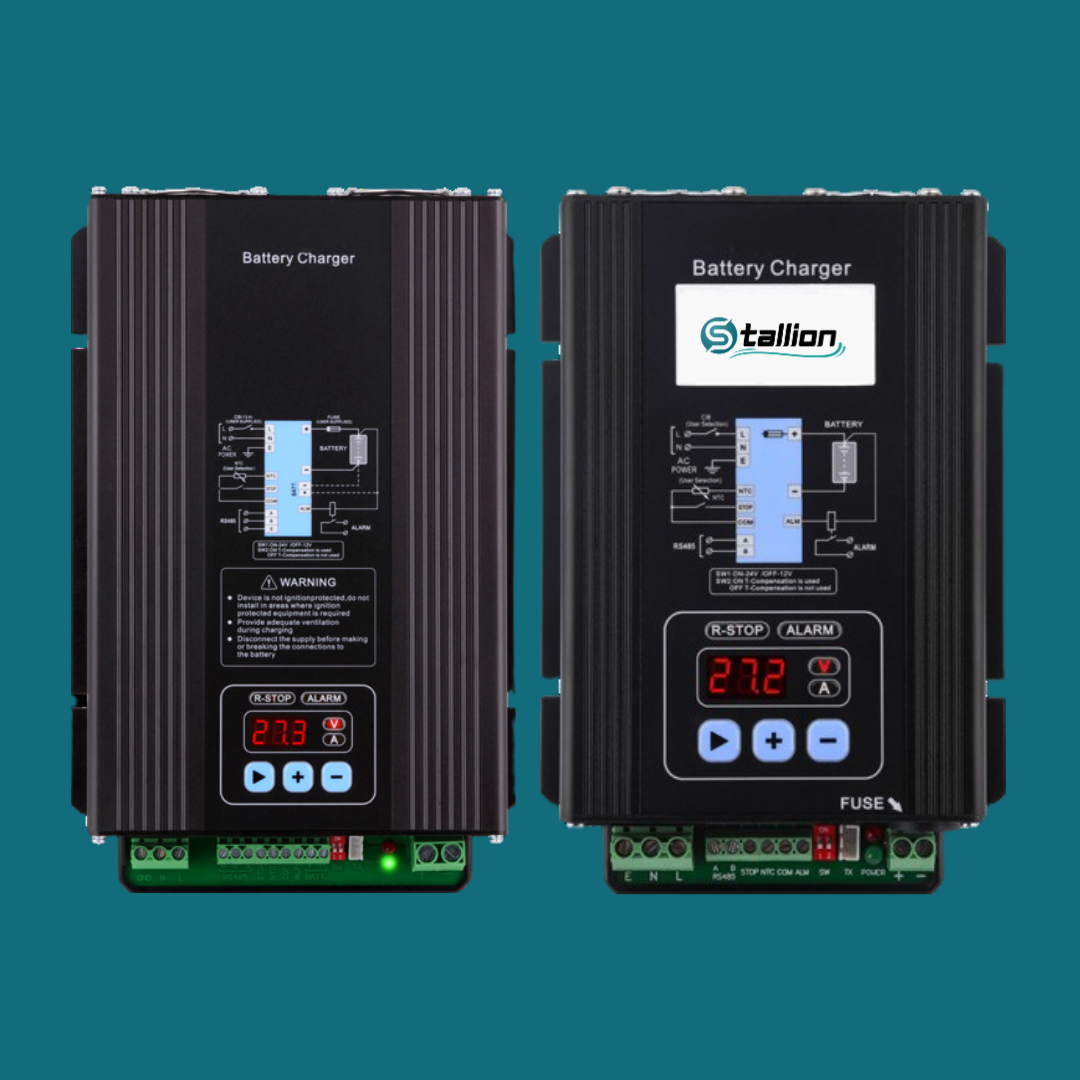

STAC360, STAC600 and STAC1000 intelligent chargers

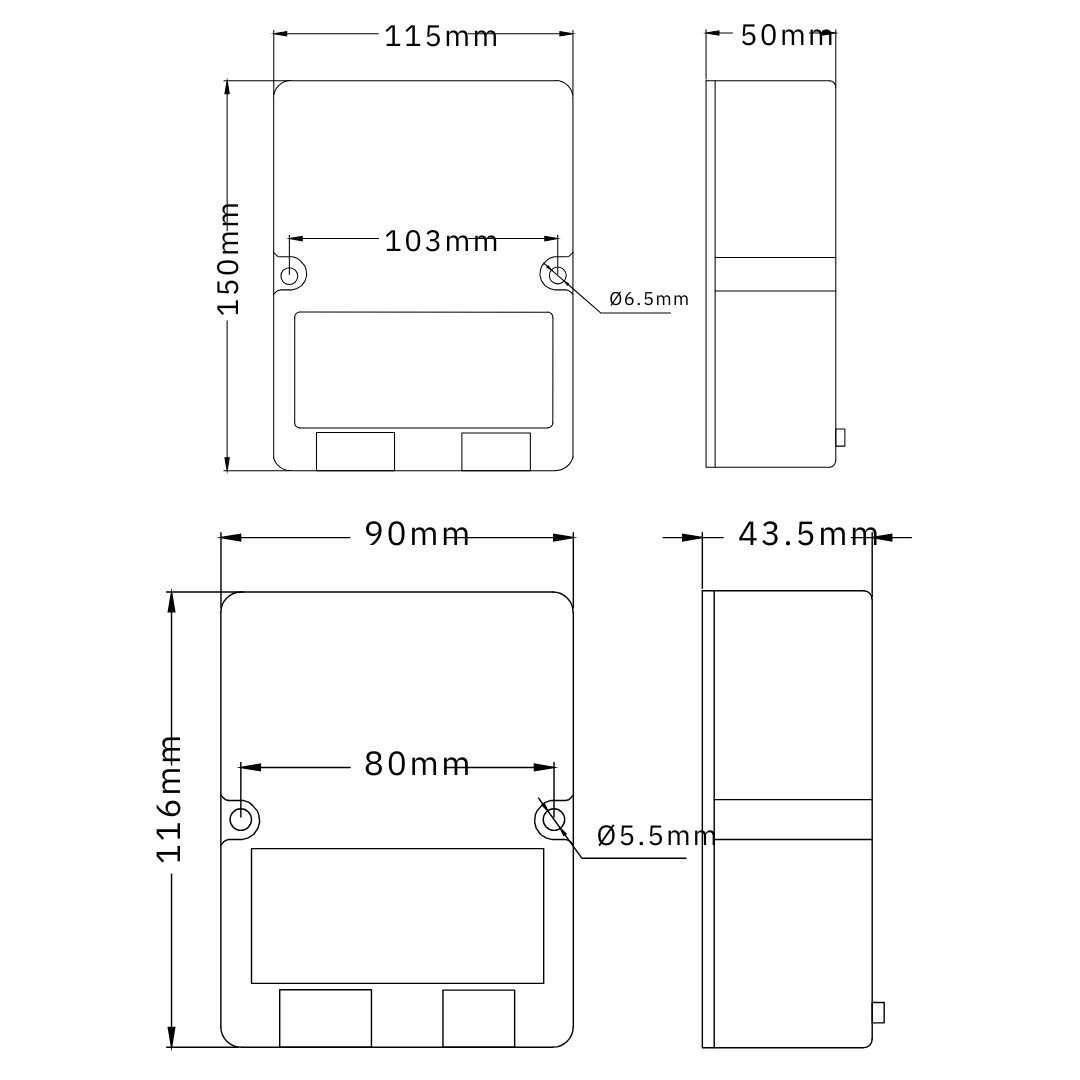

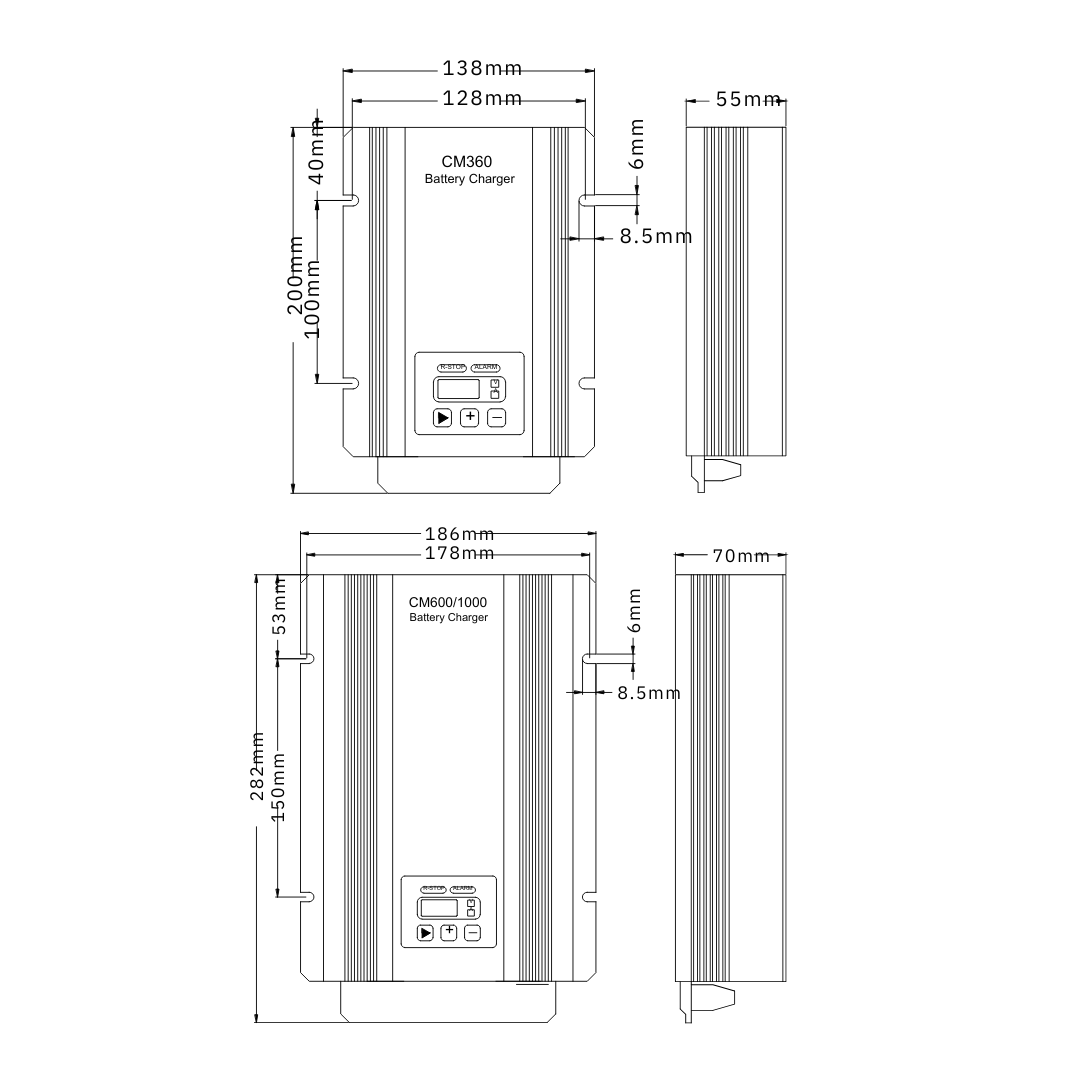

Intelligent charger dimensions and technical drawing

Intelligent battery charger technical specifications

Product Overview

Intelligent Battery Chargers for 12V and 24V Systems

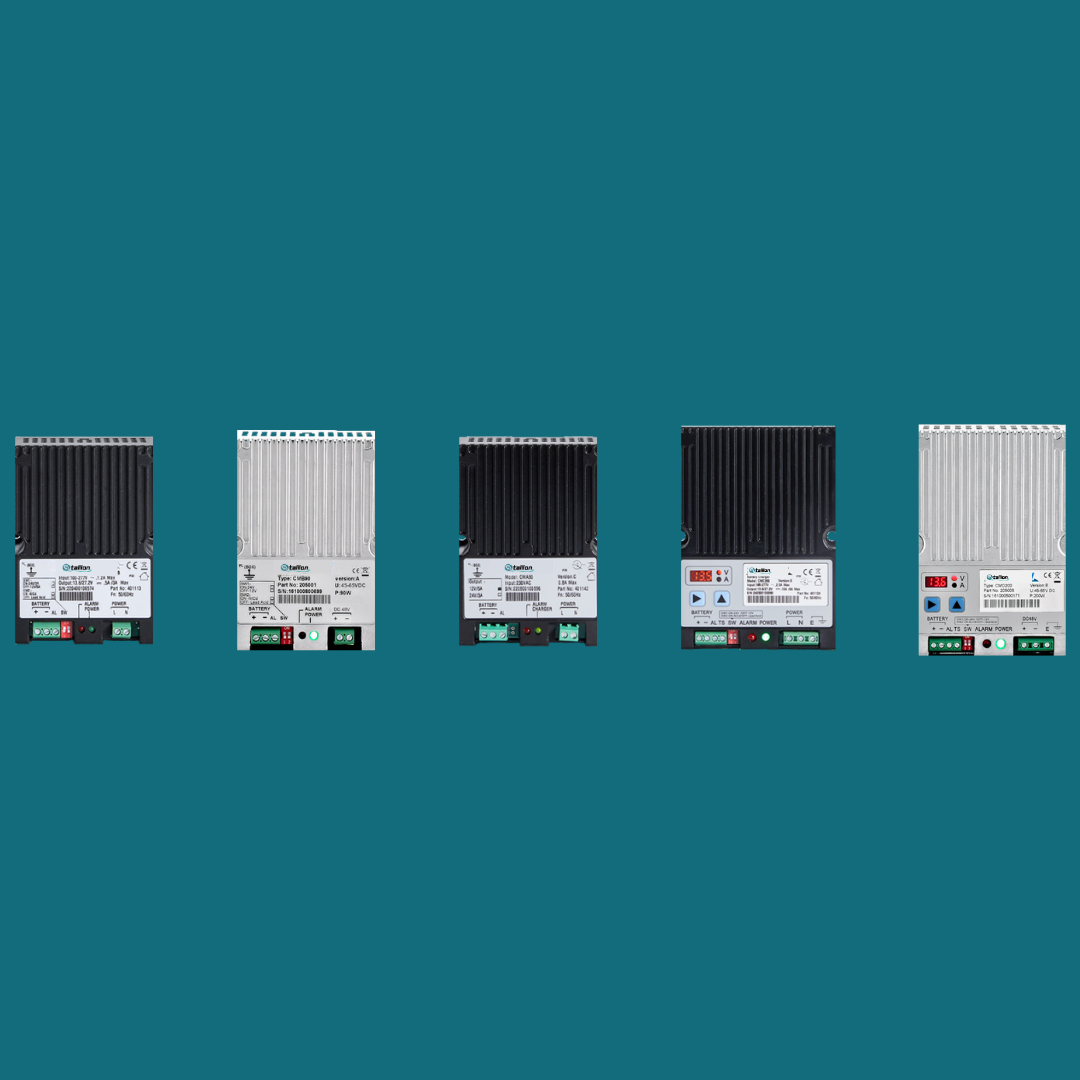

The Stallion intelligent charger range includes compact and high-output battery chargers for 12V and 24V battery systems. Available models provide dedicated boost and float charging voltages, with different input supplies, charging currents and maximum power ratings for varying battery-charging requirements.

The compact STAC90 and STAC200 charger families provide output currents from 3A to 10A and maximum output power from approximately 70W to 200W. Depending on the selected configuration, input options include wide-range AC supplies and 40V to 60V DC input, while selected models support lead-acid and NiCd battery settings.

For higher charging requirements, the STAC360, STAC600 and STAC1000 models provide maximum output capacities of 360W, 600W and 1000W. Charging current extends up to 40A, while selected high-output models include digital voltage and current indication, alarm status and RS485 communication.

Request a Quote Download Datasheet

Why Choose This Product

Features & Benefits

The Stallion intelligent battery charger range offers multiple voltage, current, input and communication configurations for different 12V and 24V charging systems.

12V and 24V Charging

Charger configurations are available for both 12V and 24V battery systems across compact and high-output models.

Boost and Float Voltages

The range provides specified boost and float charging-voltage settings according to the selected battery voltage and charger configuration.

Wide Output Range

Available charging currents extend from approximately 3A to 40A, with maximum output power from approximately 70W to 1000W.

AC and DC Input Options

Depending on the model, input options include wide-range AC supplies and 40V to 60V DC input configurations.

Battery-Type Selection

Selected charger models include a selector for lead-acid and nickel-cadmium battery charging settings.

Digital and RS485 Options

Digital voltage and current indication, alarm status and RS485 communication are available on selected high-output models.

Technical Data

Key Specifications

Technical specifications vary between compact and high-output intelligent charger models. Contact us for complete model-specific data.

Request Full Datasheet

Product Type	Intelligent battery charger
Model Range	STAC90, STAC200, STAC360, STAC600 and STAC1000
Battery Voltage	12V and 24V
Output Current	Approximately 3A to 40A
Maximum Output Power	Approximately 70W to 1000W
AC Input Options	100–277VAC, 185–265VAC or 185–277VAC
DC Input Option	40–60VDC on selected models
Boost Voltage	14.0V / 28.0V; 14.5V / 29.0V on selected settings
Float Voltage	13.6V / 27.2V; 14.1V / 28.2V on selected settings
Battery Types	Lead-acid and NiCd on selected models
Communication	RS485 on selected high-output models
Temperature Range	Operating and storage ranges vary by model

Charging Options

Battery Charging Applications

Select an intelligent charger according to battery voltage, required charging current, available input power, battery type and communication requirements.

12V Battery Charging

Multiple compact and high-output models are available for 12V battery systems, with charging current up to 40A.

24V Battery Charging

Dedicated 24V charger configurations provide specified boost and float charging voltages for the selected model.

Compact Charger Systems

STAC90 and STAC200 models provide compact charging options with AC and selected DC input configurations.

High-Output Charging

STAC360, STAC600 and STAC1000 models provide maximum output power from 360W to 1000W.

Lead-Acid and NiCd Settings

Selected charger configurations include dedicated settings for lead-acid and nickel-cadmium batteries.

RS485-Enabled Systems

Selected high-output chargers provide RS485 communication for connection with compatible external systems.
