Industrial Oil Heating

Oil Heater

Circulation and immersion oil heaters available from 100W to 3000W for oil quantities ranging from approximately 3L to 360L.

100W–3000W Heating Output

AC 220V & AC 415V Options

3L–360L Oil Range

Product Overview

Circulation and Immersion Oil Heating Solutions

The Stallion oil-heater range includes complete circulation oil heaters and compact immersion oil-heating elements. The two configurations provide different power ratings, voltage options and applicable oil capacities, allowing the appropriate oil heater to be selected according to the required system capacity and installation arrangement.

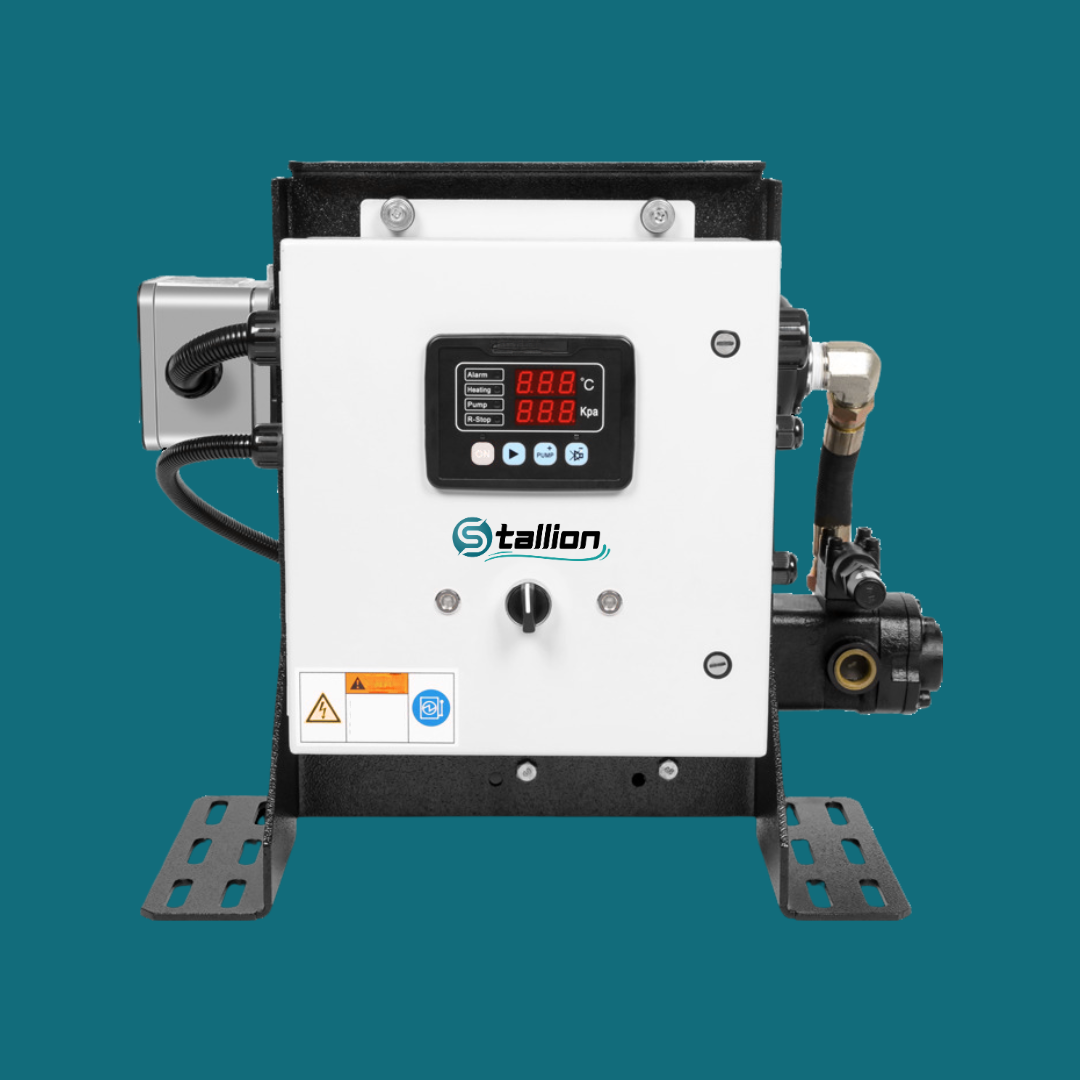

The STAC3010, STAC3020 and STAC3030 circulation oil heaters provide 1000W, 2000W and 3000W outputs for oil quantities ranging from approximately 50L to 360L. These units operate on AC 415V three-phase power and feature a preset temperature range of approximately 20°C to 30°C.

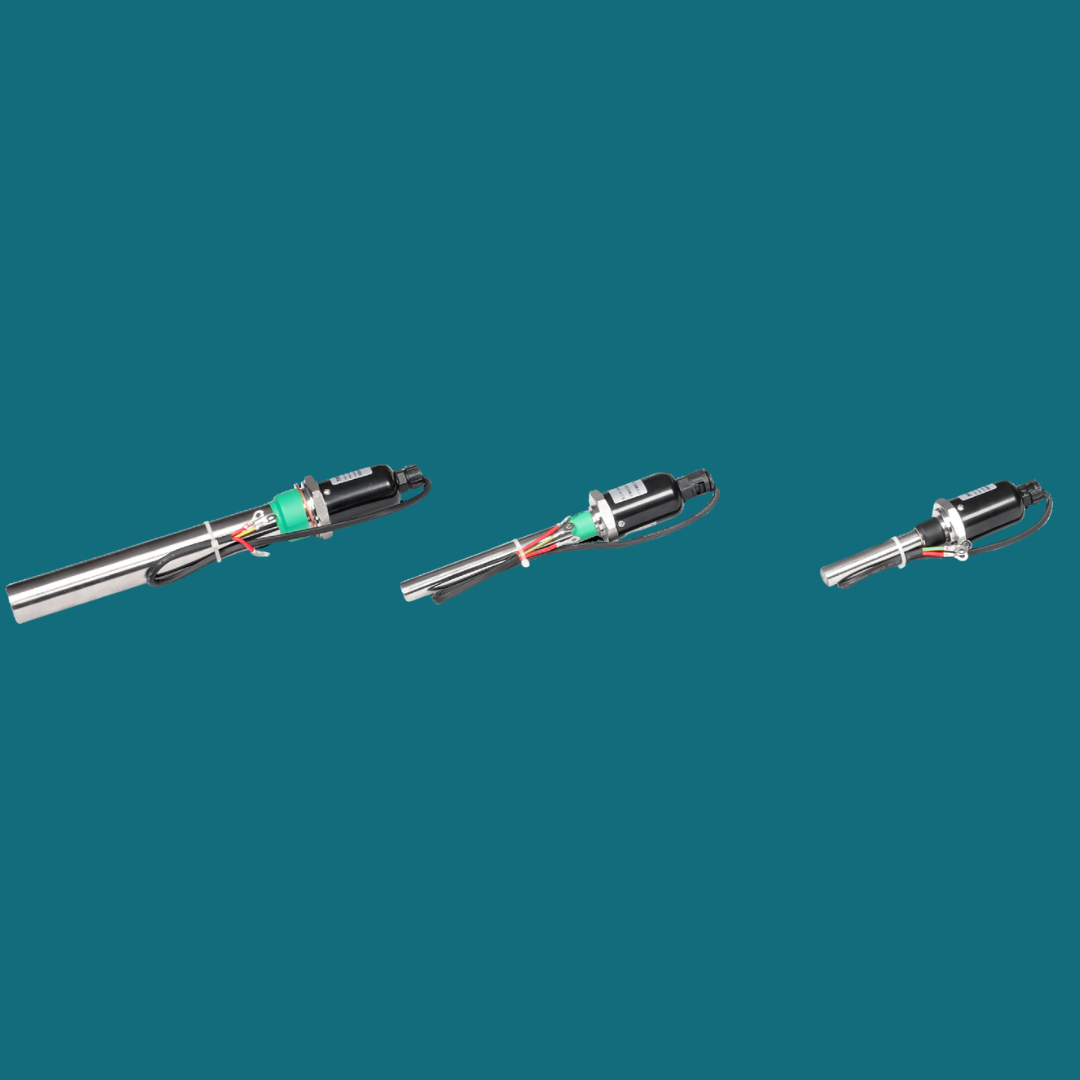

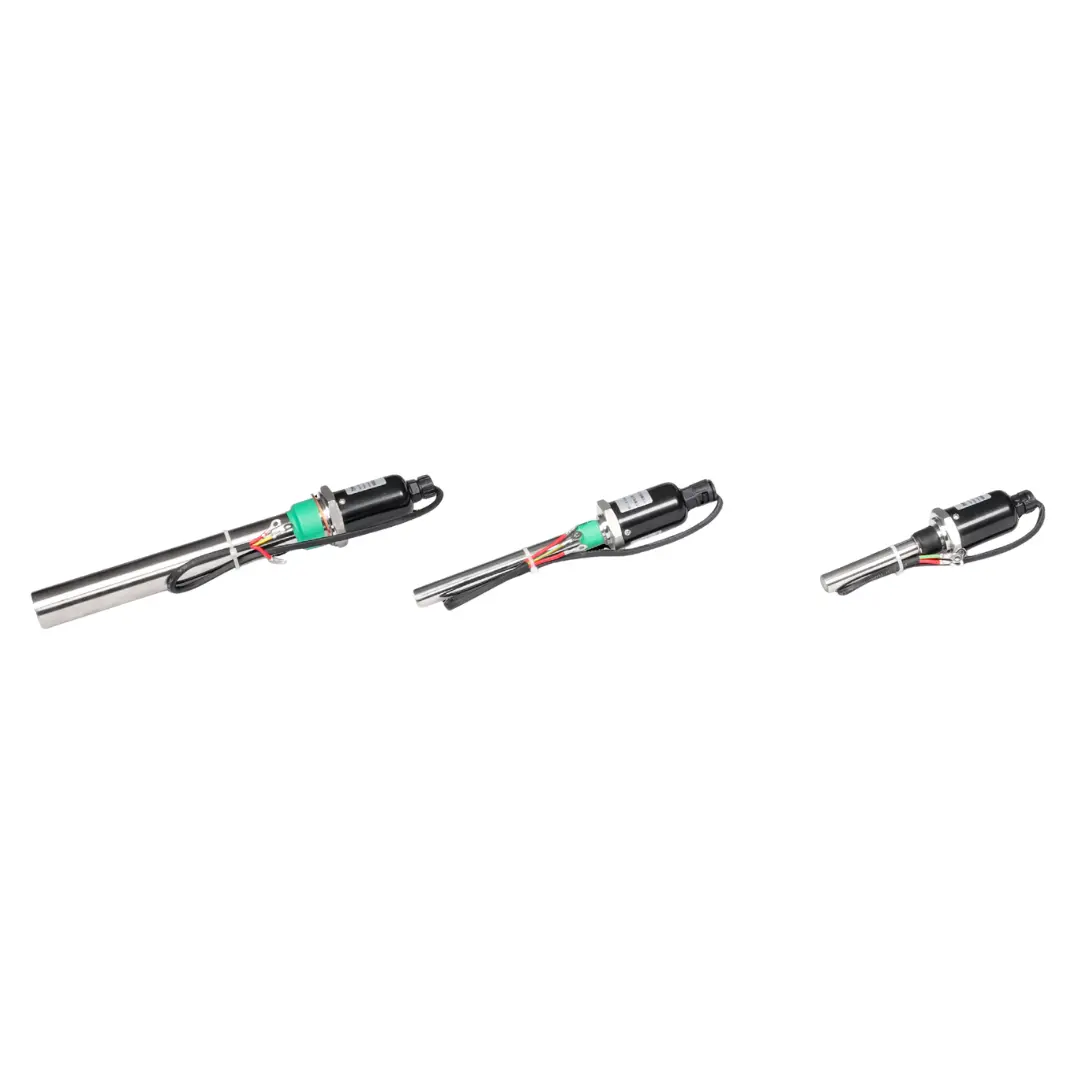

The immersion oil-heater range operates on AC 220V single-phase power and is available from 100W to 1000W for oil quantities ranging from approximately 3L to 180L. The range offers IP65 protection, while interface-thread specifications and electric-heating-tube dimensions can be selected according to installation requirements.

Request a Quote Download Datasheet

Why Choose This Product

Features & Benefits

The Stallion oil-heater range provides circulation and immersion configurations for different power supplies, oil quantities and installation requirements.

Two Heater Configurations

Choose between complete circulation oil-heater systems and compact immersion oil-heating elements according to the required installation arrangement.

Wide Power Range

Available heating outputs range from 100W to 3000W across the complete circulation and immersion oil-heater product range.

Multiple Oil Capacities

Different models are available for applicable oil quantities ranging from approximately 3L to 360L.

Controlled Temperature Range

Circulation and immersion heater models provide a specified preset or temperature-control range of approximately 20°C to 30°C.

IP65 Protection

Both the circulation oil-heater systems and immersion oil-heating elements are listed with an IP65 protection rating.

Flexible Immersion Options

Interface-thread specifications and electric-heating-tube dimensions can be selected for compatible immersion-heater installations.

Technical Data

Key Specifications

Technical specifications vary between the circulation and immersion oil-heater ranges. Contact us for complete model-specific data.

Request Full Datasheet

Product Range	Circulation and immersion oil heaters
Circulation Models	STAC3010, STAC3020 and STAC3030
Immersion Models	STAC1100 to STAC11000 series
Heating Output	100W to 3000W
Voltage Options	AC 220V 1P2W and AC 415V 3P3W
Applicable Oil Quantity	Approximately 3L to 360L
Temperature Control	Approximately 20°C to 30°C
Protection Level	IP65
Insulation Resistance	10MΩ on circulation models
Voltage Strength	1800V on circulation models
Pressure Test	≥0.8MPa on circulation models
Operating Temperature Range	-30°C to 50°C or -30°C to 55°C, model dependent
Storage Temperature Range	-30°C to 80°C or -40°C to 80°C, model dependent
Circulation Heater Dimensions	H472mm × W570mm × D355mm
Weight	Approximately 43kg or 0.25kg–1kg, model dependent

Available Configurations

Applications & Configurations

Select an oil-heater model according to the required oil quantity, available voltage, heating output and circulation or immersion configuration.

50L–120L Circulation Heating

The STAC3010 provides 1000W of heating output for applicable oil quantities from approximately 50L to 120L.

120L–240L Circulation Heating

The STAC3020 provides 2000W of heating output for applicable oil quantities from approximately 120L to 240L.

240L–360L Circulation Heating

The STAC3030 provides 3000W of heating output for applicable oil quantities from approximately 240L to 360L.

Small Immersion Heaters

Models from 100W to 300W are available for applicable oil quantities ranging from approximately 3L to 50L.

Medium Immersion Heaters

Models from 400W to 600W are available for applicable oil quantities ranging from approximately 25L to 100L.

High-Capacity Immersion Heaters

The 800W and 1000W models support applicable oil quantities ranging from approximately 85L to 180L.
